GSJ系列双螺杆挤出机

GSJ系列双螺杆挤出机

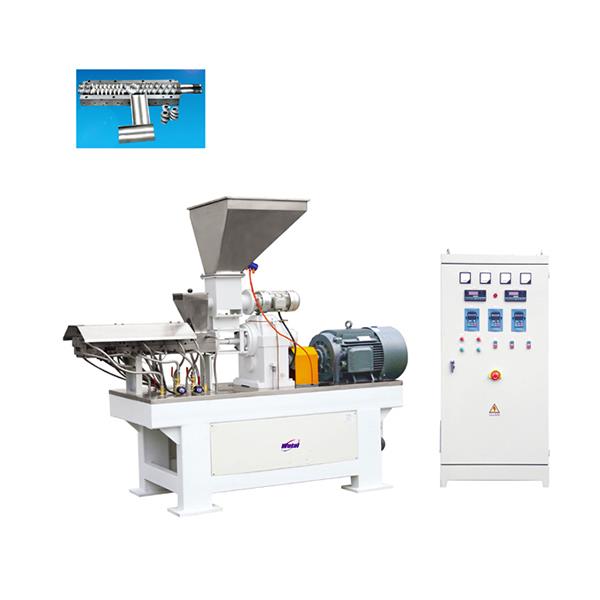

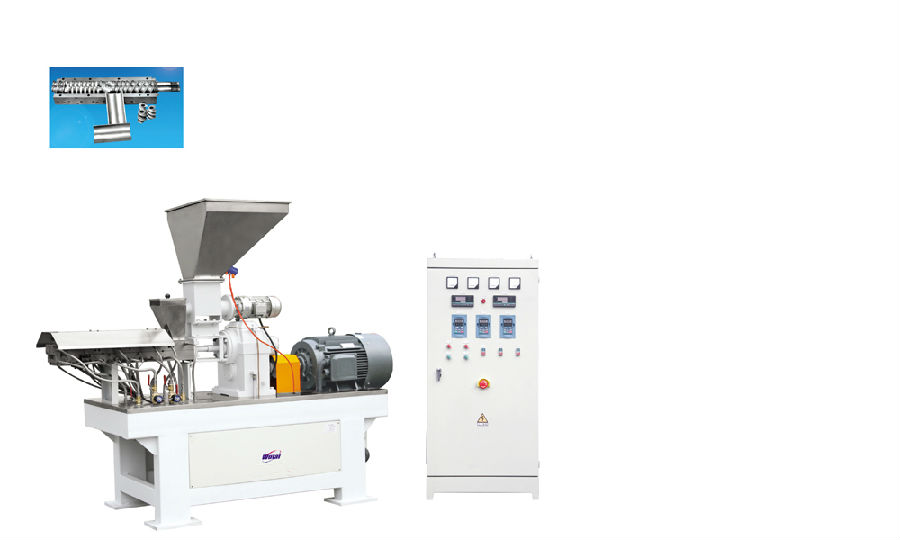

GSJ系列双螺杆挤出机GSJ series twin screw extruder



该机是高速双螺杆挤出机,产量高,原料的分散及混炼效果好,螺杆特殊排列,高速旋转,螺筒衬瓦可互换,是挤出化学原料的最佳设备.



主要特点:



*高产出量和最优混炼效果.

*机筒具有高效热交换及温度自动控制系统.

*机筒对开设计,清机、维修方便.

*螺杆可灵活组合.

*具有优良的自清洁能力.

*进料系统备有计量螺杆,进料量准确均匀.

*操作安全可靠.

*采用先进温控表双向PID控制±2℃.

*螺套采用分段式衬瓦设计.

*进料口配强磁保护.

*采用专用硬齿面挤出机减速箱,低噪音,高效可靠.

*油路电控自动报警

*螺筒设有软化水自动循环冷却系统(选配)

*喂料采用按摩或摆动装置,防止物料打桥架空(选配)



GSJ series twin screw extruder



This machine is high speed twin screw extruder with special screw element design with two co-rotating screw shafts. ,high output capacity ,good wear resistance and exchangeable liners . The raw material in barrel is to be excellent dispersed and kneaded causing the screw elements and kneading blocks on the two shafts are precisely meshed together. This extruder is one ideal equipment for extruding various chemical materials.



Features

*New and efficient heating system, replacement conveniently

*Direct and removable water cooling system, easy cleaning

*Perfect kneading effect ,high output

*Barrel equipped with high efficient heat exchange and automatic temperature controlled system

*The opposite open barrel design ,easy to clean

*Hopper with screw shaft ensure the uniform material feeding

*Automatic alarm of lubricating oil control system

*Advanced two way PID temperature control system with tolerance ±2

*The clamshell barrel cooled by automatic recycle filter water (optional equipment)

*To void the raw material jam in the hopper , the feeder is with vibrate or swing system(optional equipment)

*There is strong permanent metal magnetic detector system



型号及规格Specification

型号

Model

33-50

50-60

50-80

58-90A

58-90B

65-100

70-110

产量Output(kg/h)

40-80

100-150200-300350-450450-550600-700800-1000

螺杆直径

Screw

Dia(mm)

Ø 33

Ø 50Ø 50Ø 58Ø 58Ø 65Ø 70

长径比Screw length(l/d)

15:1

13:1

16:1

16:1

16:1

16:1

16:1

主电机

Main motor(kw)

7.5

152230374575

螺杆转速

Screw speed(rpm)

510

500700730730730730

喂料电机

Feeding

motor(kw)

0.37

0.75

0.75

1.1

1.5

1.5

2.2
