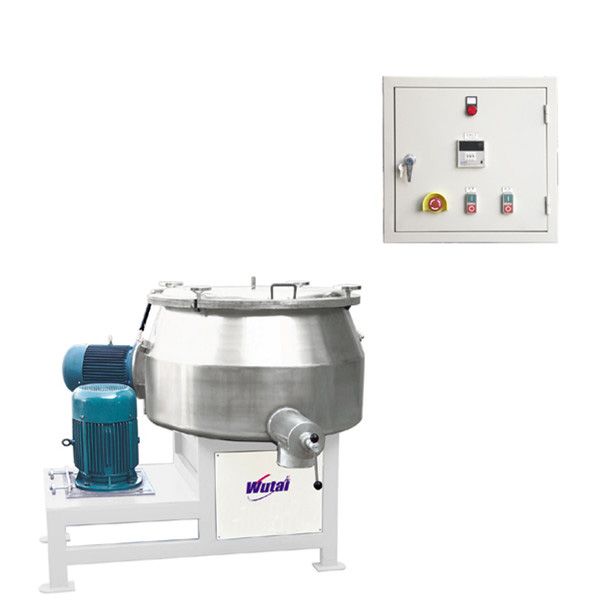

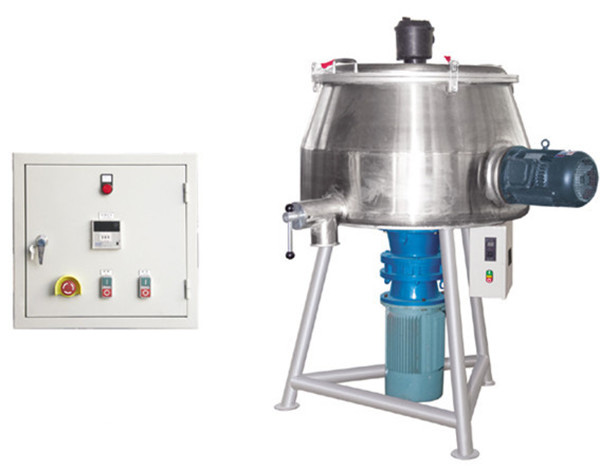

HG系列高速混料机
HG系列高速混料机适用于对多组粒状或块状固体物料进行混合,在进行混合的同时对物料进行破碎.色料助剂分散优良,清机拆卸方便,采用先进密封设计,无粉尘泄露.
主要特点：
*易于清机,方便换颜色.
*高效破碎,混合均匀.
*时间预置准确,定时自动控制.
*出料方便,高产出量.
*加装安全保护及电机过载保护等, 操作安全.
HG series horizontal high speed pre-mixer
This machine is suitable for mixing solid coarse and lumpish multi-component material. The material will be crushed during mixing. Pigment and chemical auxiliary disperse homogeneously, can be dismounted easily. there is no powder leakage because of superior sealing.
Main Features:
*Easy cleaning , convenient for color change
*Mixing homogeneously and efficiently crushing
*Adjustable mixing time preset and controlled accurately
*Easy discharging, high output
*There is over loading and safety protection for motors, Operation safety
型号及规格Specification
型号 Model | 产量/罐 Output/tank(kg) | 混合电机 Mixing motor(kw) | 破碎电机 Crushing motor (kw) | 混合时间 Mixing time (Min/container) | 外形尺寸 Dimension (L*W*H m) |
HG-100 | 80 | 5.5 | 4 | 4-6 | Ø 0.7*1.3*1.38 |
| HG-150 | 150 | 7.5 | 4 | 4-6 | Ø 1.2*1.6*1.6 |
HG-300 | 300 | 15 | 5.5 | 4-6 | Ø 1.3*1.5*1.8 |
HG-500 | 500 | 18.5 | 7.5 | 4-6 | Ø 1.6*1.6*1.9 |
HG-600 | 600 | 22 | 7.5 | 4-6 | Ø 1.6*1.6*1.9 |
HG-800 | 650-800 | 30 | 7.5/2 | 4-6 | Ø 1.9*1.9*2.0 |
HG-1000 | 900-1000 | 45 | 7.5/2 | 4-6 | Ø 2.0*2.2*2.5 |
