ZSJ型双螺杆挤出机

ZSJ型双螺杆挤出机,是双螺杆同向旋转结构,螺杆上的螺纹块和混炼块相互精密齿合作用下,将原料充分热熔,取得最佳的混料和分散效果.

主要特点：

*高产出量和最优混炼效果, 光泽度比普通挤出机提高3-5度.

*机筒具有高效热交换及温度自动控制系统.

*机筒对开设计,清机、维修方便.

*电控模式有三种选择：

(a)常规控制

(b)按欧洲标准设计

(c)电脑触摸屏 PLC可编程控制

*具有优良的自清洁能力.

*进料系统备有计量螺杆,进料量准确均匀.

*操作安全可靠.

*采用先进温控表双向PID控制±2℃.

*螺套采用分段式衬瓦设计.

*进料口配强磁保护装置.

*采用专用硬齿面挤出机减速箱,低噪音,高效可靠.

*油路电控自动报警（选配）.

*螺筒设有软化水自动循环冷却系统（选配）

*喂料采用按摩或摆动装置,防止物料打桥架空（选配）

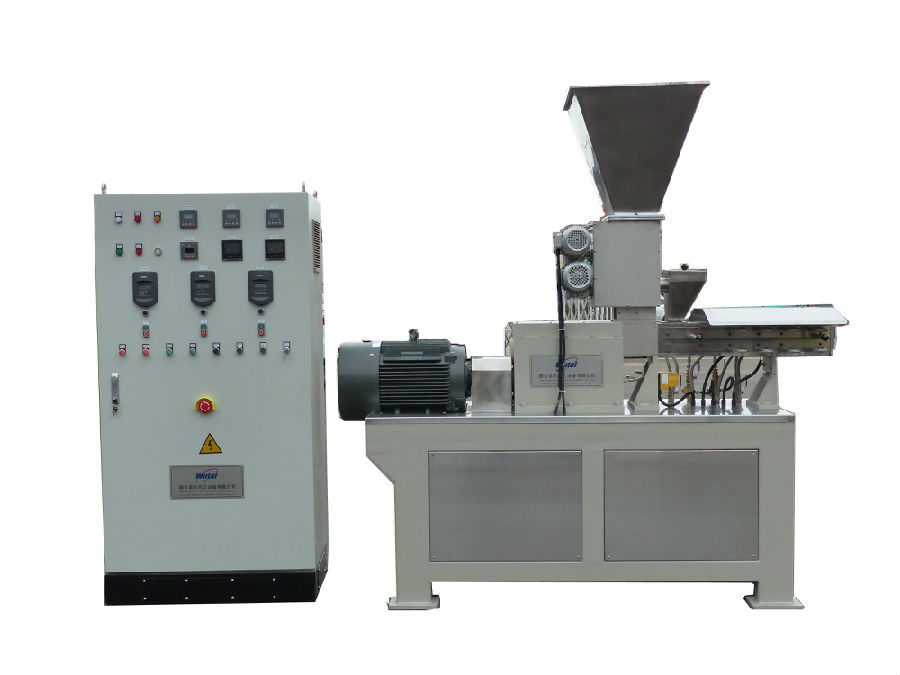

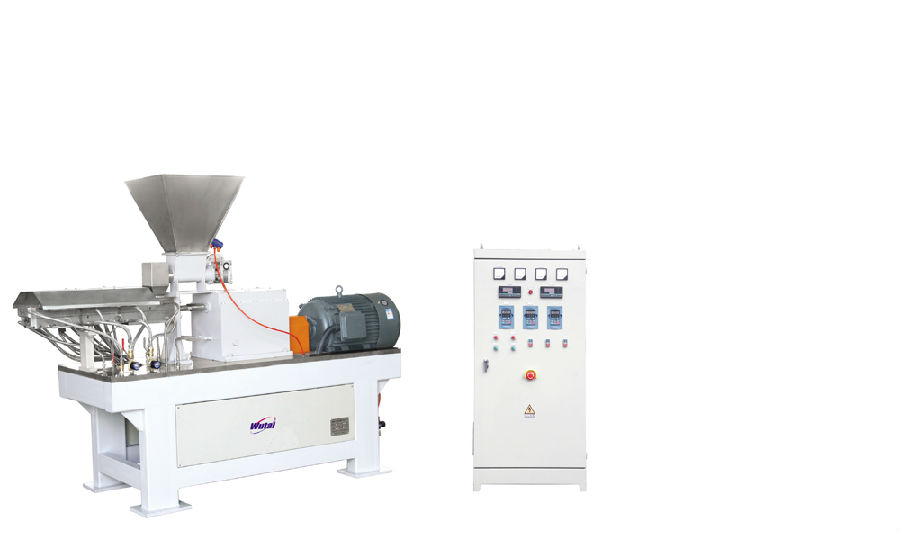

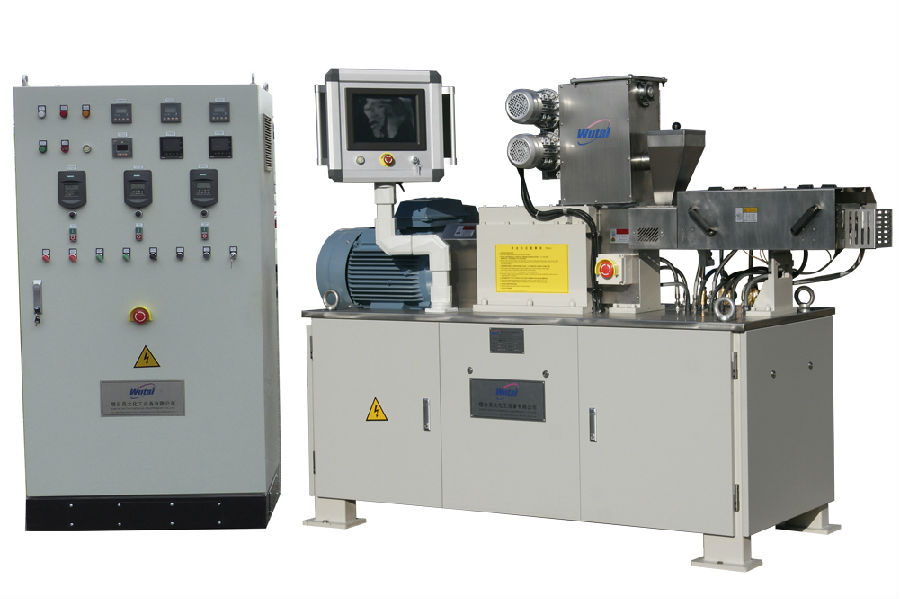

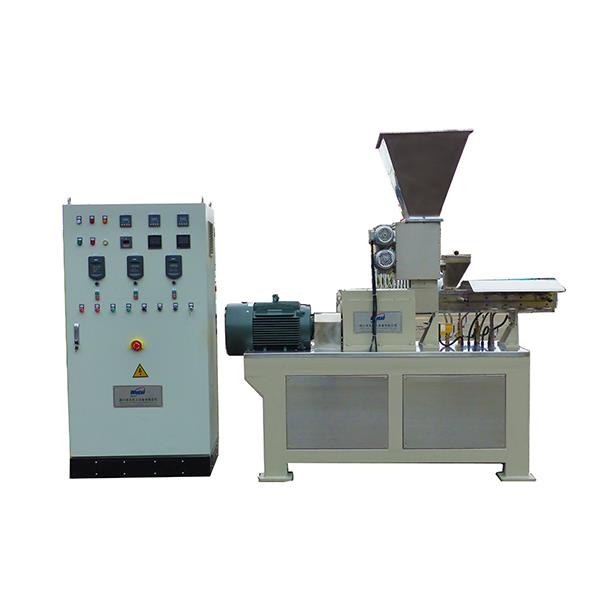

ZSJ series twin screw extruder

This extruder is co-rotating twin screw extruder ,materials can achieve ideal dispersed and kneaded effect after fully hot-melted under the precise intermeshing action of the conveying elements and kneading elements on the screws.

Main Features

*High output capacity and excellent mixing efficiency, glossiness can increased 3-5 degree than normal extruder.

*Clamshell barrel has high efficient heat-exchange and automatic temperature control system

*Barrel is opposite open type,easy to clean

*Hopper with screw shaft ensure the uniform feeding

*Automatic alarm of lubricating oil control system

*Advanced two way PID temperature control system with tolerance ±2℃

*The clamshell barrel cooled by automatic recycle filter water (optional equipment)

*Screw sleeve is segment liner design

*3 types electric control type for your choose

  (a) Normal control

  (b) design according to the EU standard.

  (c) Touch screen computer display and PLC control

*Gearbox designed in lower noise and high speed

*To void the raw material jam in the hopper , the feeder is with vibrate or swing system(option equipment)

*There is strong permanent metal magnetic detector system

型号及规格Specification
