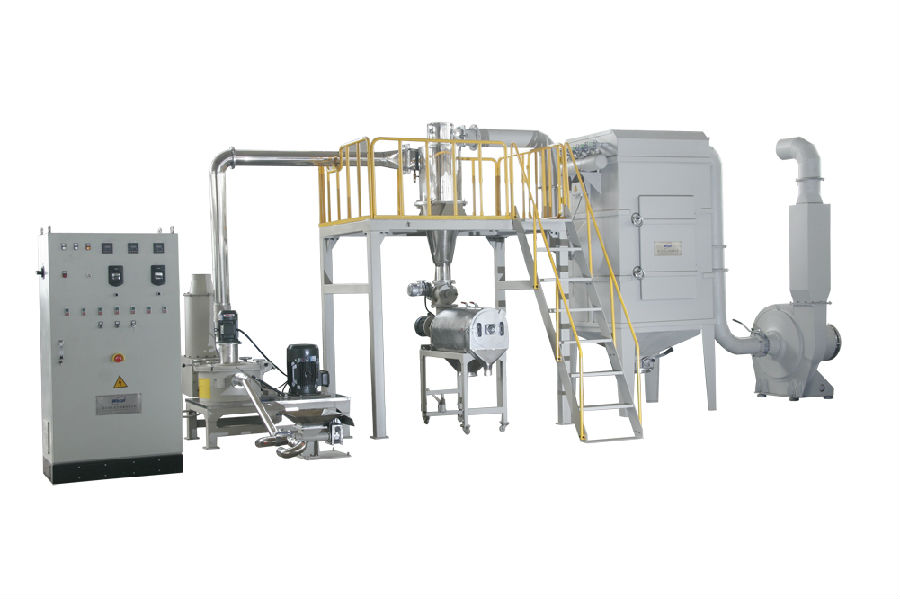

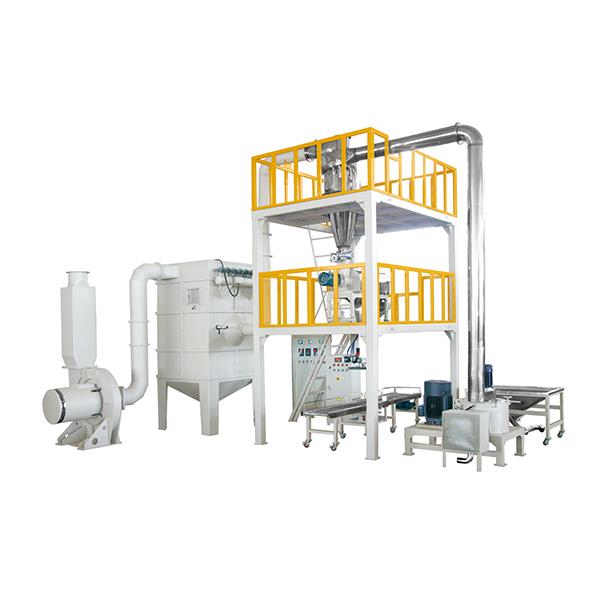

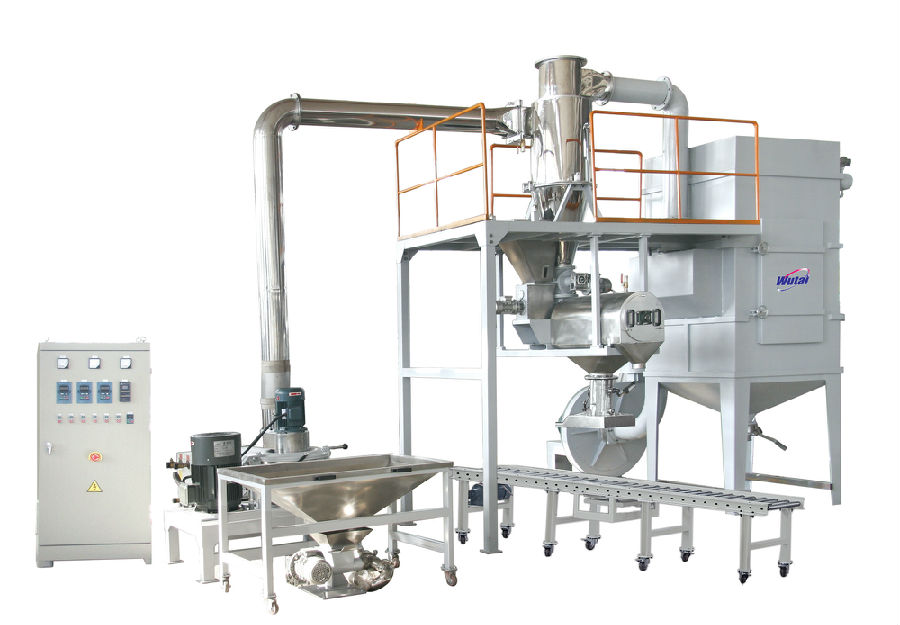

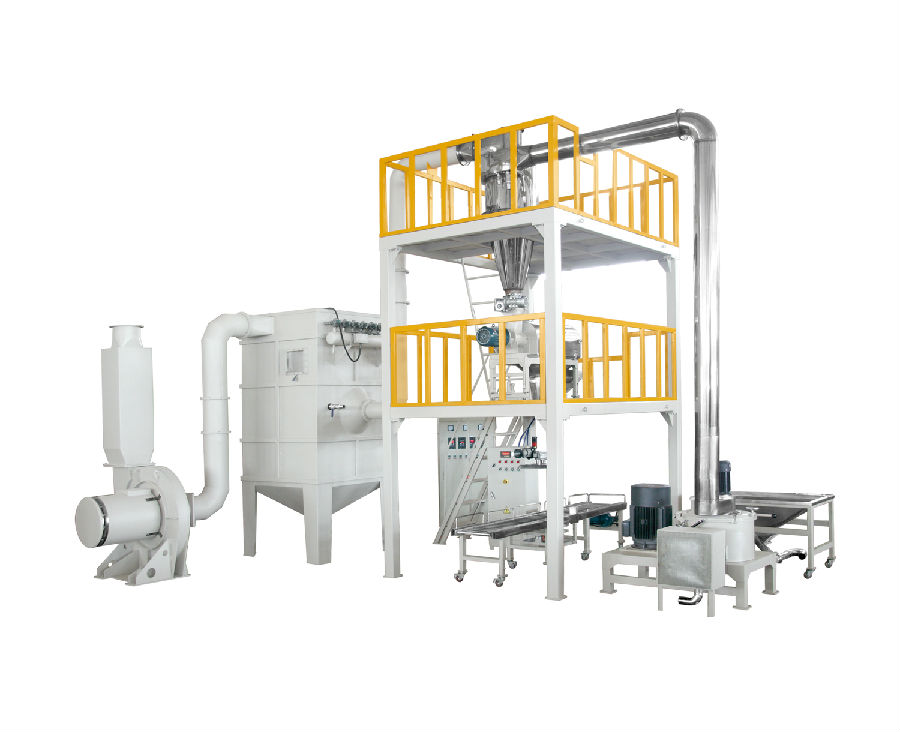

ACM系列立式磨粉机
ACM系列立式磨粉机具有高速粉碎、空气分级、旋风分离、筛选及超细粉收集等功能.可调节微磨粉系统运行参数获得理想、稳定的粉末粒径分布.ACM系列磨粉系统是生产粉末涂料的主要设备.也可用于颜料、钙粉、碳粉、药品、及食品的粉碎.
主要特点：
*粒径分布稳定,粒径分布均匀可调.
*产量高,回收率高（≥98％）.
*螺旋风力进料系统.
*分离器双层冷却.
*低噪音,带有特制消音装置易于清机和维修.
*符合欧洲ATEX防爆设计标准
*操作安全.
ACM series grinding system
ACM series grinder is a key equipment in whole powder coating production line, designed with functions of high speed milling , air classifying , cyclone sifting, and the fine powder collection, it can apply for production of pigment , calcium, carbonate , medicine and food etc .
Features:
*Homogeneous and stable particle distribution
*Particle size adjustable
*High output capacity
*Higher recollection rate ≥98%
*Easy to clean and maintenance
*Operation safety
*Mill humidity monitored(option)
*Cyclone double cooling
*Mill cover open/close by electricity/air(optional equipment )
*Casting body of air blower make lower noise (optional equipment)
型号及规格Specification
型号 model | ACM-07 | ACM-10 | ACM-20 | ACM-25 | ACM-30 | ACM-40 | ACM-50 |
产量 Outpu (kg/h) | 80-100 | 150-200 | 200-300 | 300-450 | 500-600 | 700-800 | 800-1000 |
主电机 Main motor(kw) | 5.5 | 7.5 | 11 | 15 | 22 | 30 | 37 |
主磨转速 Main mill speed(rpm) | 7500 | 7000 | 6000 | 6000 | 5000 | 4500 | 4000 |
| 分级磨功率Classifier motor(kw) | 1.1 | 1.1 | 2.2 | 3.0 | 4.0 | 4.0 | 5.5 |
分级磨转速 Classifier speed(rpm) | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 | 0-2980 |
喂料电机 Feeding motor(kw) | 0.37 | 0.55 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 |
风机功率 fan motor(kw) | 5.5 | 7.5 | 11 | 18.5 | 22 | 37 | 45 |
外形尺寸 Overall dimension(m) | 4.3*1.2*2.7 | 6*1.3*3.2 | 8*1.4*3.8 | 8*1.5*3.8 | 8*2.2*3.9 | 8*1.7*4 | 8*1.8*4 |
